1. Introduction: Why Equipment Selection Matters for Third-Party Testing Institutions
In the third-party testing industry, "equipment selection" is never a simple brand choice, but a trust vote related to data authority, operational efficiency and industry reputation.
For professional laboratories with CNAS and CMA certification that undertake hundreds of commissioned test reports every day, the credibility of test data depends not only on the professional quality of operators, but also on the accuracy, reliability and compliance of test equipment — especially rapid temperature change test chambers, the "high-frequency core equipment" in the field of environmental reliability testing. Their performance directly determines the gold content of test reports and even affects the market competitiveness of testing institutions.
Faced with the mixed and uneven quality of rapid temperature change test chambers in the market, how can third-party testing institutions get out of the "selection dilemma" and select truly trustworthy equipment suppliers? Lab Companion has given the most intuitive and convincing answer with more than 20 years of technological precipitation and a large number of delivery cases for testing institutions.
2. What Testing Institutions Really Need from Rapid Temperature Change Test Chambers
The equipment procurement logic of third-party testing institutions is essentially different from that of enterprise-owned laboratories. For enterprises, rapid temperature change test chambers are "special tools" serving their own products; for third-party testing institutions, however, they are "public testing infrastructure" with harsh operation requirements, which constitute the "hard threshold" for industry selection:
• High-load Operation Stability: Testing institutions have intensive orders, and rapid temperature change test chambers operate almost continuously (annual operation time often exceeding 6,000 hours). This requires the equipment to have high Mean Time Between Failures (MTBF) and long-term stable operation capacity.
• Multi-standard Compatibility: Customers’ submitted products cover various fields (consumer electronics, auto parts, military products, etc.), requiring the equipment to be compatible with multiple standards (GB/T 2423.22, IEC 60068-2-14, GJB 1032, MIL-STD-2164, etc.) and realize "one machine for multiple uses" with flexible program switching.
• Measurement Compliance: CNAS laboratories have strict requirements for data traceability. The equipment’s temperature sensor layout, calibration interface design and data output format must be convenient for measurement and compliance verification to avoid affecting laboratory efficiency.
• Intelligent Interconnection: The equipment needs to be seamlessly connected with LIMS (Laboratory Information Management System) to realize automatic data synchronization and archiving, reducing manual costs and improving testing efficiency.
These harsh requirements have eliminated most underpowered suppliers, and Lab Companion has accurately solved these pain points with its strong strength.
3. Lab Companion's Rapid Temperature Change Test Chambers: Key Advantages for Testing Institutions
Lab Companion has been deeply engaged in the field of environmental reliability test equipment for more than 20 years, operating in strict accordance with ISO9001, ISO14001, ISO45001 and ISO27001 systems. Its products have passed EU CE certification, serving customers in key fields such as aviation, aerospace and communications. Its rapid temperature change test chambers have obvious advantages in the following aspects:
• Full Specification Coverage: Equipped with a full range of volume models (34L, 64L, 100L, 180L, 340L, 600L, 1000L, 1500L), meeting all testing needs from component level to whole machine level in one stop, reducing repeated purchase costs.
• Excellent Technical Parameters: Supports multiple linear temperature change rates (5℃/min, 10℃/min, 15℃/min, 20℃/min), temperature range of -70℃ to +180℃, and temperature fluctuation controlled within ±0.5℃. All core parameters are verifiable by CNAS third-party calibration, ensuring data authority.
• Strong Standard Compliance: Fully compatible with international and domestic general standards, and deeply adapted to military standards, flexibly supporting "gradual cycle" and "abrupt impact" test scenarios.
• Intelligent Interconnection: Supports real-time data synchronization and remote monitoring, seamlessly connecting with LIMS to realize automatic data archiving and improve management efficiency.
4. Real Cases: Repeat Purchases Prove Lab Companion's Quality
In the testing equipment industry, "re-purchase" is the most direct recognition of product quality. Lab Companion's rapid temperature change test chambers have won continuous trust from authoritative testing institutions:
• Chaozhou Quality, Metrology Supervision and Testing Institute (Guangdong Province): A government-authorized third-party inspection institution with CNAS, CMA and other qualifications. It undertakes national, provincial and municipal supervision and arbitration tests, and has continuously selected Lab Companion's equipment for its stable performance and accurate data.
• Hubei Optics Valley Laboratory: An independent legal entity led by Huazhong University of Science and Technology, with high-standard reliability testing needs. It also chose Lab Companion's equipment to provide stable support for scientific research and testing.
The reason for gaining such trust is Lab Companion's strict product philosophy: each equipment undergoes full-load aging test before leaving the factory, and core components (such as compressors from Copeland and Danfoss) ensure a service life of more than 10 years, reducing downtime losses.
5. After-Sales Service: Lab Companion's Commitment to Global Customers
Lab Companion is more than an equipment supplier, but a long-term trusted partner. It provides comprehensive service guarantees to meet the needs of testing institutions and overseas customers:
• Global Service Network
We maintain a comprehensive service network to deliver efficient after-sales support. Fast response and timely on-site maintenance are guaranteed to minimize equipment downtime globally.
• Exclusive Value-Added Services
Complimentary annual calibration, dedicated equipment files, as well as proactive maintenance and sensor calibration reminders are provided. We ensure reliable equipment performance and bring you worry-free operation all year round.
• Professional Overseas Technical Support
Our professional team offers round-the-clock online guidance for global users to resolve operational and after-sales issues rapidly, keeping your equipment running stably and efficiently at all times.
6. Conclusion: Trust Is Built on Hard Power
Currently, the rapid temperature change test chamber market is chaotic, with many products failing to meet standards. However, Lab Companion adheres to military-grade quality, measured parameters and transparent contracts, proving that the equipment worthy of testing institutions' trust relies on hard power — the ability to stand CNAS calibration, withstand long-term operation and maintain data authority.
Lab Companion's rapid temperature change test chambers have become the "standard choice" for third-party testing institutions, interpreting the connotation of trust with strength and accompanying their development as a reliable partner.
In recent years, the iteration speed of core components of AI servers has been accelerating, and the heat load has risen sharply. Taking an AI server equipped with 8 high-end GPUs as an example, its peak power consumption easily exceeds 10kW, and the power density of high-density cabinets soars to more than 50kW or even 100kW, with heat output 3 to 5 times higher than that of traditional servers. More importantly, modern high-load clusters are not the occasional periodic peaks in traditional data centers, but continuous heat generation brought by high-intensity continuous operation. When the hardware operating temperature reaches the critical safety threshold of 85°C to 90°C, the GPU will automatically start the "thermal throttling" self-protection program to cool down by sharply reducing the core frequency, which directly leads to a significant attenuation of computing power, a drop in operating efficiency of up to 25%, and an unlimited passive extension of model training time, seriously restricting the efficiency of AI R&D and application landing.
The drawbacks of traditional environmental reliability testing solutions have been fully exposed in this context. Limited by the cavity volume and heat load capacity, traditional testing equipment cannot accommodate the entire AI server/rack system at all, nor can it simulate the dense heat generated during the actual operation of GPU clusters, failing to meet the full-scenario reliability verification needs of AI equipment. Under this premise, a walk-in rapid temperature change test chamber with high load capacity and accurate environmental simulation capabilities has become an essential key equipment in the R&D and mass production verification links of AI servers, and even a core support for solving the contradiction between computing power and heat dissipation.

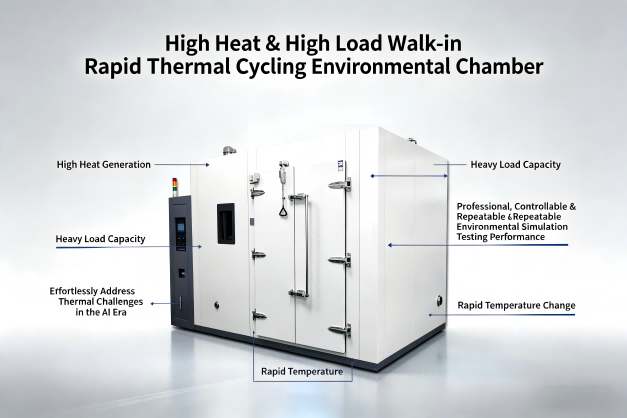

Precisely Adapted to AI High-Heat Testing: Lab Companion Walk-in Rapid Temperature Change Environmental Chamber
As a "leader in domestic scenario adaptation" with more than 20 years of experience in the field of environmental reliability testing equipment, Lab Companion, in conjunction with the advanced technical standards of France's Jielong, based on China's strong local R&D and manufacturing capabilities, has launched a high-heat, high-load Walk-in rapid temperature change environmental chamber specifically designed for large-scale high-power equipment testing, which accurately matches the testing needs of the AI computing era.
Large Capacity + High Load, Easily Undertaking AI Whole-Rack Testing
Traditional testing solutions are generally limited by equipment load capacity, making it difficult to restore the real heat generation environment of AI servers under full load, resulting in a disconnect between test results and actual application scenarios. Lab Companion's walk-in environmental chamber has achieved a major technological breakthrough — it can simultaneously carry 1000kg of aluminum ingots and a heat load of up to 50kW for testing, and the load capacity can be flexibly expanded according to the customer's actual testing needs. Whether it is an entire rack of AI servers, GPU cluster cabinets, or high-power communication equipment whole-system, the environmental chamber can easily accommodate them with its "super large capacity", eliminating the need to build additional testing platforms, greatly simplifying the testing process, and improving testing efficiency and accuracy.
Indirect Refrigeration System, Achieving Dual Breakthroughs in Energy Saving and Precision
In terms of energy consumption control and testing accuracy, the environmental chamber is equipped with an advanced indirect refrigeration system, which not only strictly controls the temperature and humidity uniformity within ±2K and the temperature and humidity fluctuation within ±1K during the test to ensure the accuracy and reliability of test data, but also reduces energy consumption by more than 50% compared with traditional refrigeration methods. Long-term use can save customers a lot of energy costs, truly achieving a win-win situation of environmental and economic benefits, and adapting to the needs of enterprises' green development.
Wide Temperature Range and High Precision Control, Adapting to Diversified Industry Standards
The equipment's temperature testing range covers -70℃ to +150℃, and the humidity range covers the standard 20～98%RH (the low-humidity type can be expanded to 5～98%RH), which can meet the diverse testing scenario needs of different AI equipment. The rapid temperature change series supports linear or non-linear temperature change rates from 5℃/min to 25℃/min, and can be equipped with a liquid nitrogen auxiliary refrigeration system to increase the cooling rate to 30℃/min, efficiently simulating extreme temperature change environments. The overall design strictly follows the GB/T 2423.2-2008 high-temperature testing standard, and also meets the latest industry standards such as T/UNP 538-2025, ensuring that the test results are authoritative and universal.
Intelligent Control System, Easy Operation and Full-Process Traceability
The equipment is equipped with the Q8 series intelligent controller, which supports multi-segment program editing, precise temperature and humidity calculation and full-process data recording. It is easy to operate and understand, without cumbersome operations by professional personnel. The entire testing process is traceable, facilitating customers to review test data and optimize test plans. In addition, the environmental chamber can seamlessly conduct joint debugging and testing with new heat dissipation solutions such as liquid cooling, and supports external CDU thermal management equipment, helping whole-machine manufacturers accurately verify the reliability of products under different heat dissipation solutions, quickly find thermal design shortcomings, and then optimize the system thermal management plan to enhance the core competitiveness of products.
Laying a Solid Foundation for Computing Power Breakthroughs, Empowering the High-Quality Development of the AI Industry
Heat is the natural enemy of computing power and a key bottleneck restricting the sustainable development of the AI industry. Lab Companion's high-heat walk-in environmental chamber is precisely the underlying supporting force in the AI computing era — it can not only help enterprises accurately verify the operational stability of AI equipment under extreme heat loads, but also enable the new generation of computing power products to have "temperature resistance for real application scenarios" before they are launched, reducing product failure risks from the source, shortening the R&D cycle, and accelerating product mass production and landing.
Up to now, this series of products has been successfully applied in intelligent computing centers in many countries and regions in the Asia-Pacific. With stable operation performance, accurate testing capabilities and flexible scenario adaptability, it has won wide recognition and high evaluation from industry customers. In the future, with the continuous iteration of AI technology, computing power will be further upgraded, equipment power consumption and heat density will continue to increase, and testing requirements will become more stringent. Lab Companion will continue to deepen its presence in the field of environmental testing equipment, focus on AI computing power testing scenarios, continuously optimize product performance and iterate technical solutions, and contribute domestic strength to the breakthrough development of global AI computing power.
In the military and aerospace sectors, product reliability is directly tied to national security and the success of space missions. From missile guidance systems and satellite communication modules to airborne radar and spacecraft electronic cabins, such equipment endures extreme temperature shocks and complex environmental stresses during service. To eliminate early product defects before launch and prevent field failures, Environmental Stress Screening (ESS) is an indispensable process. Accordingly, the rapid temperature change test chambers used for ESS must first undergo rigorous reliability qualification.
With over 20 years of expertise in environmental and reliability test equipment, Lab Companion adheres to military-grade quality standards and full-process compliance systems, acting as a rigorous verifier of high-reliability rapid temperature change test chambers for national defense, military and aerospace applications. The company operates in accordance with ISO 9001, ISO 14001, ISO 45001 and ISO 27001 management systems, and all products hold CE certification. Its global clients cover core industries including aviation, aerospace, ordnance, shipbuilding, nuclear power, communication and electronics.
1. Inherent Reliability: Self-Stress Screening for Every Unit
Military and aerospace clients trust our equipment based on a core principle: a screening chamber designed to expose product flaws cannot deliver credible test data if it suffers frequent malfunctions, temperature overshoot or unstable temperature change rates.
Lab Companion integrates this self-verification philosophy throughout the entire product lifecycle. Every rapid temperature change test chamber undergoes full-load aging testing before delivery, simulating the harshest on-site operating conditions to ensure long-term stable performance from day one.
The TC Series offers a test volume ranging from 270L to 1300℃, with a temperature range of -70℃ to +180℃, meeting screening requirements from component level to complete equipment level. It supports linear temperature change rates of 5℃/min, 10℃/min, 15℃/min and up to 20℃/min, with temperature fluctuation controlled within ±0.5℃, delivering accurate and stable data for military and aerospace testing.
2. Comprehensive Safety Protection System
Military and aerospace tests involve high-value samples and extreme operating conditions, making equipment safety critical to test success. Lab Companion rapid temperature change test chambers are equipped with a full-dimensional safety protection system to secure all test operations.
Hardware-based independent protection includes dedicated over-temperature protectors, mechanical pressure switches and thermal relays, which cut off hazardous circuits within milliseconds independent of software control. The compressor is protected against overpressure, overload, high exhaust temperature and frequent startup via delay control. The heating system adopts dual over-temperature protection and anti-dry-burn design to isolate heating circuits automatically even if the main controller fails. These redundant safety designs ensure stable and secure 24/7 continuous operation for military screening tasks.
3. Full Military Standard Compliance: GJB 150A & MIL-STD-810H
Testing for military and aerospace projects must fully comply with military specifications, and precise standard alignment is the foundation of compliant testing. Our rapid temperature change chambers meet international and domestic standards including IEC 60068-2-14 and GB/T 2423.22, and are fully optimized for military criteria such as GJB 150A and MIL-STD-810H, supporting two core test modes: gradual temperature cycling and thermal shock testing.
In line with environmental stress screening specifications, the temperature change rates fully satisfy GJB 1032-90, covering 5℃/min to 15℃/min to meet ESS protocols for components and large-scale systems. The equipment also complies with mainstream global screening standards including MIL-STD-2164 and GJB 1032-90 in terms of temperature variation speed and cycle parameters.
4. ESS-Dedicated Design for Environmental Stress Screening
Environmental Stress Screening (ESS) is a critical process to identify early failures and latent defects for military and aerospace electronic products. The ESS Series environmental test chambers are professionally engineered for ESS applications, accelerating temperature transition and adopting high-velocity airflow to efficiently induce potential product weaknesses.
This series supports multiple test types, including rapid temperature change, condensation testing, high-temperature & high-humidity cycling, and combined temperature-humidity tests to meet full ESS requirements for electronic devices. Equipped with the Q8 color touchscreen controller, it features precise temperature control, minimal overshoot and user-friendly operation. The advanced cascade refrigeration system with eco-friendly refrigerants guarantees long-term continuous operation. With a temperature range of -55℃ to +85℃, adjustable temperature change rates of 5℃/min to 15℃/min and temperature uniformity ≤2℃, it fully executes electronic product ESS procedures specified in GJB 1032-90.
5. CNAS Calibration & Compliant Data for Military Assessment
Test data serves as core evidence for military equipment appraisal, type approval and mass production qualification, requiring high authority and traceability. Every Lab Companion chamber is calibrated in a CNAS-accredited laboratory before delivery, with official calibration certificates provided as standard. All test data is directly acceptable for military certification and review, eliminating additional third-party inspection costs. Built-in high-precision data acquisition modules automatically generate timestamped test reports that fully comply with ISO 17025 laboratory data traceability regulations.
6. Practical Industry Cases: Reliable Support for Aerospace Research
Our military and aerospace capabilities have been fully verified in real-world projects. We once customized a 20m³ large-volume test chamber for a key aerospace research institute with full military certification, solving industry pain points such as limited customization options and delayed after-sales service, setting a benchmark for domestic substitution. Our long-term partners include China Aerospace Science and Industry Corporation, China National Institute of Metrology and other leading national defense research institutions, providing stable high-performance environmental test equipment for the national defense and aerospace industry.
Conclusion
To screen high-reliability products, the test equipment itself must pass rigorous screening. Supported by decades of technical accumulation and military-grade quality management, Lab Companion insists on strict quality verification for high-reliability rapid temperature change test chambers. Covering ESS stress screening chambers, rapid temperature cycling chambers and high-low temperature test equipment, we uphold the brand commitment of Authoritative Guarantee for Compliant Testing, delivering traceable, accurate and reliable environmental reliability verification solutions for national defense and military equipment development.
Safety Operation Procedures and Accident Prevention Measures for Lab Companion High Temperature Ovens

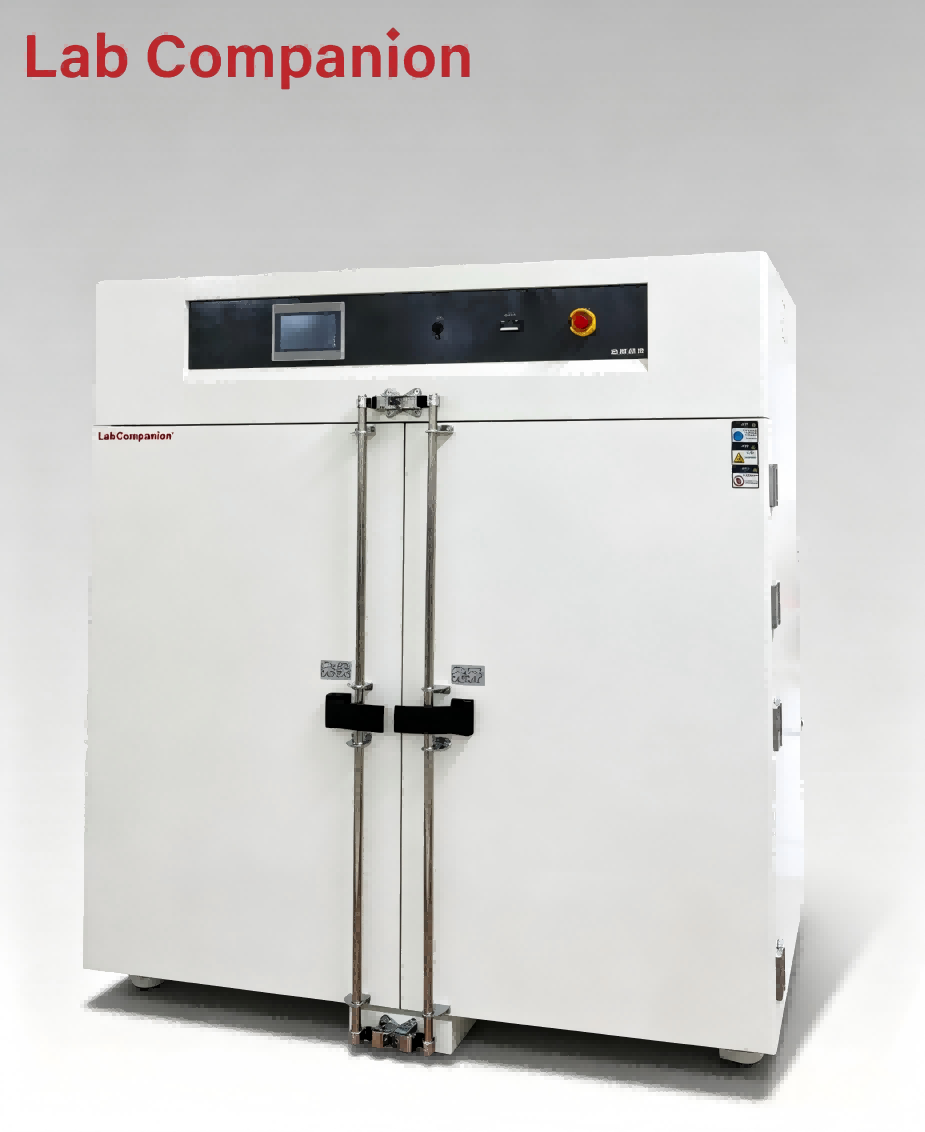

High temperature ovens are widely used in industrial drying, curing, high-temperature aging and other working conditions. With high operating temperature and heavy running load, they are prone to cause burns, fires, explosions, electrical short circuits and other safety accidents. To ensure personnel and equipment safety and standardize operation procedures, these safety operation procedures and accident prevention measures are formulated in accordance with industrial oven application standards.
1. Safety Operation Procedures for High Temperature Ovens
1.1 Pre-Start Safety Inspection
1.1.1 Environment Inspection
Keep the operation area ventilated, dry and tidy. No flammable and explosive materials, corrosive liquids, cartons, debris or other items are allowed within 1.5 meters around the oven. The ground shall be flat and stable, and sufficient space shall be reserved for equipment heat dissipation.
1.1.2 Equipment Status Inspection
Check that the door sealing gasket is intact without damage, and the inner chamber, air duct and heating elements are free of oil, debris and water. Confirm that the temperature sensor, over-temperature protector, fan and emergency stop switch function properly. For explosion-proof ovens, inspect that the gas monitoring, exhaust and pressure relief devices are intact.
1.1.3 Sample Compliance Inspection
It is strictly prohibited to place flammable, explosive, volatile, strong oxidizing or highly corrosive items. Sealed containers and pressurized components shall not be baked directly. Dangerous goods such as lithium batteries and chemical raw materials must be processed in dedicated explosion-proof ovens.
Samples shall be placed evenly without blocking air ducts or touching heating elements, and the loading capacity shall not exceed 1/3 of the effective inner chamber volume.
1.1.4 Power, Water and Parameter Inspection
Confirm that the supply voltage is consistent with the equipment nameplate and the grounding is firm and reliable. For water-cooled models, check that the cooling water flow and quality are normal.
Verify the set temperature, time and program. Operation beyond the rated temperature range of the equipment is strictly prohibited.
1.2 Standard Operation During Operation
• After placing samples, close and lock the chamber door tightly to ensure good sealing.
• Start the equipment according to procedures, and observe whether the temperature rise, fan operation and instrument display are normal, with no abnormal noise, odor or smoke.
• Assign dedicated personnel on duty during equipment operation. Check temperature and alarm information regularly; do not leave the post without permission or sleep on duty.
• Frequent door opening, modification of system protection parameters, and touching of high-temperature inner chamber, sample racks and heating components are strictly prohibited during operation.
• For live or liquid-containing samples, strictly control the load power and standardize wiring to prevent short circuits and liquid leakage.
• In case of over-temperature, alarm or fault prompt, immediately press the emergency stop switch, cut off the main power supply, and restart only after troubleshooting.
1.3 Shutdown and Final Operations
• After testing, stop heating first and keep the fan running to allow the internal temperature to naturally drop below 60°C before opening the door.
• Open the door slowly sideways to release residual heat first. Wear high-temperature resistant insulated gloves when handling samples to prevent scalding.
• Clean up residual debris and water in the inner chamber in a timely manner, wipe the inner chamber with soft cotton cloth, and keep the cabinet dry and clean.
• Turn off the main power and water supply. Drain water from pipelines for water-cooled models. Tidy up tools and samples, and restore the operation area to order.
• Fill in the equipment operation log truthfully, recording running time, temperature parameters, sample information and abnormal conditions.
1.4 Basic Requirements for Operators
• Operators must be professionally trained and qualified before taking post, and be familiar with equipment structure, operation procedures and emergency response methods.
• Wear insulated gloves, goggles and other protective equipment as required during operation. Do not wear loose clothing; tie long hair up to avoid entanglement with equipment.
• Unauthorized personnel are prohibited from approaching or touching the equipment. Warning signs shall be set in the operation area.
2. Prevention Measures for Typical Accidents
2.1 Fire Accident Prevention
• Baking of gasoline, alcohol, thinners, diluents and other flammable and explosive volatile substances is strictly prohibited. If necessary, use explosion-proof ovens with forced exhaust enabled.
• Regularly clean dust, oil and plastic residues in heating tubes, air ducts and fans to prevent heat accumulation and spontaneous combustion.
• Calibrate the independent over-temperature protection device quarterly to ensure automatic power cutoff of heating supply when temperature exceeds the limit.
• Equip dry powder fire extinguishers near the equipment. Water or foam fire extinguishers are prohibited for electrical and high-temperature fires.
• Avoid prolonged high-temperature operation without load to prevent overheating and burnout of heating elements.
2.2 High-Temperature Scald Prevention
• Post obvious "High Temperature Hazard" warning signs on the equipment. Touching the cabinet, door or inner chamber during operation is prohibited.
• Open the door sideways at high temperature: slightly open first for heat dissipation, then fully open.
• Use special high-temperature resistant gloves and clamps for sample handling; bare-handed operation is forbidden.
• Set up a warning area for equipment just shut down to prevent accidental contact and scalding by unauthorized personnel.
2.3 Explosion and Splash Accident Prevention
• Sealed glass bottles, canned liquids and pressurized components are strictly prohibited from direct baking. Open placement and reserved pressure relief space are required.
• For flammable and explosive samples such as batteries, cells and chemical powders, explosion-proof high-temperature ovens must be used, equipped with hydrogen/carbon monoxide monitoring, independent pressure relief and emergency exhaust functions.
• Vacuum ovens shall strictly follow the procedure: "vacuum first, then heat up; cool down first, then break vacuum" to prevent burst caused by excessive internal and external pressure difference.
• Place liquid samples in trays to avoid tilting and leakage, preventing high-temperature splashing injuries.
2.4 Electrical Safety Accident Prevention
• The equipment must be reliably grounded. Regularly inspect the insulation of power cords and terminals to prevent electric leakage and short circuits caused by aging or damage.
• Supply power according to rated power strictly. Unauthorized wiring and overloaded operation are prohibited to avoid tripping or fire.
• Keep the operating environment dry. Do not operate with wet hands or rinse the electric control cabinet with water.
• Keep the emergency stop switch unobstructed. Cut off power immediately in case of electrical abnormality; live maintenance is prohibited.
2.5 Equipment Failure and Damage Prevention
• Establish a hierarchical maintenance system: clean air ducts and filters monthly, calibrate temperature, humidity and safety devices quarterly, and conduct comprehensive inspection of heating, fan and control systems annually.
• Operation over temperature, overload or over weight is strictly prohibited. Forcible modification or disassembly of core components is not allowed.
• Replace worn parts such as sealing gaskets, sensors and heaters with original accessories in a timely manner.
• For long-term shutdown, run without load monthly to maintain component activity and prevent moisture damage.
2.6 Emergency Response Measures
• Over-temperature / Alarm: Immediately press emergency stop, cut off power, close the chamber door, and troubleshoot after cooling.
• Fire Danger: Cut off power immediately, extinguish with dry powder fire extinguisher. Do not open the door to supply oxygen. Alarm promptly if the fire spreads.
• Scald Accident: Rinse the burned area with running clean water immediately. Seek medical treatment in case of severe injury.
• Explosion / Leakage: Evacuate personnel quickly, cut off power and air supply, enhance ventilation, and allow professionals to handle the scene.
• Electric Leakage / Shock: Turn off the main switch immediately. Do not touch the injured person or equipment with bare hands. Administer first aid and contact a professional electrician.
3. Daily Management Requirements
• Organize regular safety training and emergency drills to improve operators’ risk prevention and emergency response capabilities.
• Implement dedicated personnel management, regular calibration and maintenance records for equipment to ensure safety devices remain effective at all times.
• Develop special safety plans separately for non-standard working conditions and dangerous goods baking; illegal operations are strictly prohibited.
• Contact the official after-sales service of Lab Companion promptly for complex equipment failures. Unauthorized disassembly by non-professionals is prohibited.
In the field of environmental reliability testing, a high-performance high & low temperature rapid thermal cycling chamber serves as core equipment for enterprises to control product quality and verify product reliability. As a leading brand deeply engaged in the environmental testing equipment industry for many years, Lab Companion boasts in-depth insights into testing demands across various industries and extensive experience in product R&D and practical application. We have accurately identified the core characteristics of a reliable and efficient high & low temperature rapid thermal cycling chamber. From Lab Companion’s professional perspective, this article systematically breaks down the five core performance indicators that must be focused on during the selection process, providing professional guidance for industry customers to help them make accurate selections, avoid procurement pitfalls, and make informed decisions that align with their actual needs.
1. Temperature Range & Rate of Temperature Change – Define Testing Boundaries and Determine Testing Efficiency
Temperature range and rate of temperature change are the basic performance benchmarks of high & low temperature rapid thermal cycling chambers. They directly determine the breadth of the equipment’s application scenarios and affect the efficiency and pace of testing processes, making them the primary consideration in equipment selection.
Temperature Range: The key is to ensure the equipment’s temperature range fully covers the extreme high and low temperature environments that products may encounter throughout their service life, avoiding limited testing scenarios due to insufficient range. Lab Companion high & low temperature rapid thermal cycling chambers offer a temperature interval of -70℃ to +150℃ and even wider ranges, with fully linear controllability throughout the process—not just transient peak values. This ensures stable and precise temperature regulation during testing, adapting to the testing needs of electronics, automotive, military, semiconductor and other industries.
Rate of Temperature Change: During selection, priority should be given to distinguishing between no-load rate and loaded rate—the latter is more consistent with actual testing scenarios (simulating the heat capacity of real samples) and thus more valuable for reference. A high temperature change rate (e.g., 15℃/min and above) can significantly shorten testing cycles and improve testing efficiency, provided that temperature uniformity and stability are not compromised; otherwise, test data will be distorted. Equipped with a high-efficiency cascade refrigeration system and independently developed precise temperature control algorithms, Lab Companion achieves stable and nominal rapid linear temperature changes even under loaded conditions, truly realizing "efficient testing without compromise" and effectively enhancing testing efficiency while reducing time costs for customers.
2. Temperature Uniformity & Fluctuation – Lay the Foundation for Reliable Test Data
Temperature uniformity and fluctuation are core indicators for evaluating the consistency and stability of the internal testing environment. They directly affect the repeatability and authority of test results, and are critical prerequisites for ensuring valid test data.
Temperature Uniformity: Refers to the consistency of temperatures at various testing points within the equipment’s working space (industry standard: ≤±2.0℃). Poor uniformity will result in samples of the same batch being exposed to different thermal stress environments, rendering test conclusions meaningless and even misleading product R&D and quality judgments.
Temperature Fluctuation: Refers to the variation amplitude of the control point temperature over time (industry standard: ≤±0.5℃). Excessive fluctuation introduces additional thermal stress interference to samples, compromising the accuracy and rigor of testing.
Lab Companion Practice: Leveraging Computational Fluid Dynamics (CFD) technology, Lab Companion optimizes air duct structure design and employs scientifically arranged high-precision sensors to maintain exceptional temperature uniformity and minimal fluctuation even under full-load testing conditions. All equipment performance data is verified in strict accordance with national standards such as GB/T 10592, eliminating "nominal-only parameters" and ensuring every set of test data is authentic, reliable and traceable.
3. Load Capacity & Thermal Load Impact – Verify the Equipment’s Practical Performance
Most equipment specifications on the market are tested under ideal no-load conditions. In actual testing, however, the volume, weight and heat generation (thermal load) of samples directly affect the equipment’s real operational performance—this is also the core criterion for judging whether equipment performs as advertised.
Real Load Evaluation: During selection, clarify the maximum sample size, weight and heat dissipation power (W) that the equipment can support. Especially for electronic products requiring powered testing, the heat generated during operation must be fully offset by the equipment’s cooling capacity to ensure stable low-temperature testing and prevent test failure due to unbalanced thermal load.
Loaded Performance Verification: To ensure customers purchase equipment matching their actual testing needs, Lab Companion proactively recommends and supports customers in conducting simulated load tests—installing heating devices equivalent to sample thermal loads inside the chamber to on-site verify whether the equipment’s temperature change rate, temperature uniformity and extreme low-temperature performance still meet standards under real working conditions. This completely eliminates the problem of "qualified under no load but invalid under load" and guarantees robust practical performance.
4. Control System & Data Integrity – The Intelligent "Brain" of Operation and Guardian of Compliant Testing
With the advancement of laboratory intelligence and standardization, advanced control systems and rigorous data management systems have become essential requirements for modern environmental testing laboratories. For regulated industries in particular, data compliance is of paramount importance.
Intelligent Control System: A high-quality control system requires three core capabilities—high-precision temperature control, an intuitive and user-friendly interface, and powerful multi-segment programming functions. It should also be equipped with comprehensive safety protection and fault self-diagnosis features to reduce operational complexity and avoid operational risks. Lab Companion adopts an independently developed intelligent controller that supports complex temperature profile programming and pre-installs multiple internationally recognized testing standard programs. It features convenient operation and precise temperature control, adapting to the customized testing needs of various industries.
Data Integrity & Traceability: For regulated industries such as automotive, medical, military and semiconductor, equipment software must strictly comply with international regulations including FDA 21 CFR Part 11, with functions such as electronic signatures, complete audit trails, hierarchical authority management and tamper-proof data storage to ensure the compliance and traceability of test data. Lab Companion provides targeted software options meeting such stringent requirements, fully safeguarding the compliance of customers’ test data and supporting smooth passage of various industry audits.
5. Long-Term Reliability, Energy Efficiency & Service Network – Evaluate Full Lifecycle Value
High & low temperature rapid thermal cycling chambers are long-term investment equipment. Their long-term operational stability, energy consumption and after-sales support directly determine the equipment’s full lifecycle cost—an easily overlooked yet critical indicator in selection.
Long-Term Operational Reliability: The long-term stability of equipment relies on the quality of key components (e.g., compressors, controllers, sensors) and overall design lifespan. Lab Companion insists on adopting world-renowned brand core components, combined with stringent product aging tests and Factory Acceptance Tests (FAT), to ensure each delivered unit features high reliability and long service life, minimizing downtime and ensuring uninterrupted testing operations.
Operational Energy Efficiency: High energy consumption constitutes a major part of long-term operating costs, especially for laboratories operating 24/7, where energy-saving performance directly impacts operational expenses. Incorporating variable frequency regulation technology and high-efficiency heat exchange systems, Lab Companion’s energy-saving designs significantly reduce energy consumption while maintaining equipment performance, helping customers cut long-term operating costs and achieve the dual goals of "efficient testing and green energy conservation".
Full Lifecycle Service Support: A comprehensive service system guarantees the continuous and stable operation of equipment. Lab Companion has built a global service network providing full lifecycle support—from pre-sales professional consultation and customized solution design, to in-sale installation, commissioning and operation training, and post-sales rapid response, fault repair and regular preventive maintenance plans. We fully address customers’ concerns, allowing them to focus on their core testing work.
Conclusion: Anchor Value with Professional Indicators, Choose a Long-Term Reliable Testing Partner
Selecting a high & low temperature rapid thermal cycling chamber essentially means choosing a long-term, trustworthy testing partner. This requires moving beyond the misconception of "nominal parameters", starting from actual testing needs, and thoroughly examining the equipment’s core performance, loaded practical capabilities, intelligent control and compliance, as well as full lifecycle costs and service support.
Rooted in its profound understanding and relentless pursuit of the above five core indicators, Lab Companion has built its core competitiveness in products and services. Every Lab Companion high & low temperature rapid thermal cycling chamber is not only a high-performance testing instrument, but also an integrated testing solution embodying the brand commitment of "precision, reliability, efficiency and compliance". Choosing Lab Companion means selecting reliable equipment that withstands professional verification and meets practical needs, as well as a long-term partner dedicated to enhancing your product reliability and empowering high-quality industry development. On the path to pursuing quality, let professional indicators guide the way—Lab Companion stands with you to build a solid line of defense for product quality.
In the field of environmental reliability testing,high-low temperature rapid temperature change chambers are core equipment for measuring the performance stability and durability of products in extreme temperature environments, directly determining the accuracy of test data and the efficiency of product R&D and mass production. With more than 20 years of in-depth experience in the industry and precise insight into market needs, Lab Companion has formed differentiated competitive advantages in technological advancement, customization capabilities, service systems and comprehensive brand strength with its series of high-low temperature rapid temperature change chambers, becoming the preferred partner for reliability testing of high-end manufacturing enterprises.
I. Core Technology: Solving Industry Pain Points and Achieving Triple Breakthroughs in Speed, Precision and Energy Efficiency
Lab Companion focuses on core technology R&D, focusing on three core dimensions, breaking through industry conventional bottlenecks and achieving an excellent balance of high speed, high precision and low energy consumption:
• Refrigeration System: Efficient and wide temperature range, laying a solid foundation for extreme environment testing
• Temperature Change Control: Intelligent and precise, meeting dual needs of speed and precision
• Temperature Field Uniformity: Optimized design, consolidating the foundation for repeatability of test data
Efficient Wide Temperature Range Refrigeration System, Laying a Solid Foundation for Extreme Environment Testing
The equipment adopts cascade refrigeration system design, which completely breaks through the performance limitations of single-stage refrigeration, and can achieve full wide temperature range coverage from -70℃ to +150℃. Key advantages:
• Adopts R404A (low-temperature section) and R23 (high-temperature section) environmentally friendly refrigerants
• Equipped with a fully enclosed two-stage compressor, refrigeration efficiency is 30% higher than conventional industry equipment
• Balances environmental protection and practicality, ensuring rapid cooling at extreme low temperatures and stable output at high temperatures
Intelligent and Precise Temperature Change Control, Meeting Dual Needs of Speed and Precision
Equipped with Lab Companion's independently developed intelligent temperature change rate control technology, with the following characteristics:
• Supports multiple fixed rates: 5℃/min, 10℃/min, 15℃/min, 20℃/min, and continuous linear adjustment of 0.1~20℃/min
• Combined with AI intelligent temperature control algorithm and dual PID control system, automatically optimizes parameters according to sample heat capacity
• Achieves high temperature control accuracy of ±0.1~±0.3℃ and temperature fluctuation ≤±0.5℃, ensuring reliable test data
Optimized Temperature Field Uniformity, Consolidating the Foundation for Repeatability of Test Data
Key design highlights to ensure temperature uniformity:
• Air duct structure optimized by Computational Fluid Dynamics (CFD) simulation technology
• Adopts "forced convection + refined air duct design" mode and high-speed centrifugal fan, forming three-dimensional closed-loop circulating air flow
• Eliminates temperature dead zones, temperature uniformity ≤±2.0℃ (within a specific range), ensuring consistency of each test point
II. In-Depth Customization: Precisely Matching Complex Testing Scenarios in Multiple Industries
Facing increasingly complex testing needs of high-end manufacturing industries, Lab Companion takes customization capability as its core competitiveness, providing full-process modular customization solutions. Key advantages:
• Customizable according to customers' specific needs: sample size, testing standards (GJB 150A, MIL-STD-810H, etc.), special functions (explosion-proof, anti-corrosion, power-on testing, etc.)
• Covers full-range customization: equipment volume, structural design, functional configuration
• Adapts to multiple industries: semiconductor (ultra-low temperature chip testing), new energy (large-capacity battery pack explosion-proof testing), aerospace (extreme environment simulation testing)
• Delivers "one-stop" customized equipment, seamlessly integrating into customers' laboratory and production line layouts
III. Comprehensive Service System: Building a Full-Cycle Customer Support Network
Lab Companion builds a global localized service network to provide efficient and convenient support, with key features:
• Global service coverage: sales and maintenance service centers in major domestic industrial regions and key overseas markets (France, Singapore, Russia, etc.)
• Achieves "nearby service and rapid response", solving the pain point of delayed after-sales service of imported brands
Full-life cycle service support:
• Early stage: one-on-one program consultation to accurately match customer needs
• Middle stage: equipment installation, commissioning and operation training to ensure quick start-up
• Later stage: regular maintenance and rapid fault response, forming an efficient after-sales closed loop
IV. Solid Brand Strength: Deeply Cultivating the Industry and Winning Global Customer Trust
Lab Companion's brand strength is supported by standardized operation and strong comprehensive strength:
• Established in 2005, focusing on R&D, manufacturing and sales of environmental simulation and reliability test equipment
• Paid-in registered capital of 10 million yuan, strictly following four-system standards: ISO9001, ISO14001, ISO45001, ISO27001
R&D strength and customer recognition:
• Has professional R&D institutions, standardized laboratories and senior technical talents, with multiple independent intellectual property patent technologies
• Recognized by top scientific research institutions: National Institute of Metrology of China, Chinese Academy of Sciences, Tsinghua University, Peking University, etc.
• Long-term cooperation with leading industry enterprises: Huawei, BYD, CATL, China Aerospace Science and Technology Corporation, SMIC, etc.
• High customer repurchase rate and well-known brand reputation at home and abroad
Conclusion
With more than 20 years of in-depth cultivation, Lab Companion has built a complete "technology + product + service" solution by virtue ofcore technology breakthroughs, in-depth customization capabilities and full-cycle service support. In the future, Lab Companion will continue to focus on the needs of high-end manufacturing industry, deepen R&D and service upgrading, help improve product quality and technological innovation, and continue to lead the development direction of environmental reliability testing field.
Lab Companion is deeply engaged in the semiconductor testing field. To address the core needs of precision testing in the industry, we have launched a semiconductor chip-specific high and low temperature humidity test chamber. With a high-cleanliness chamber structure and precise temperature and humidity control as its core highlights, the equipment is specially designed to provide full-scenario high-low temperature and humidity alternating environment testing for products such as chip wafers, bare chips, packaged devices, and semiconductor modules. It can fully meet the core needs of chip packaging reliability verification, aging testing, and environmental adaptability evaluation, providing stable, accurate, and clean test environment support for semiconductor product R&D, process optimization, and quality control.
I. Product Positioning: Specialized for Semiconductor Chips, Different from General-Purpose Test Equipment
This series of test chambers abandons the homogeneous design of general-purpose equipment and is fully optimized and upgraded around the precision characteristics of semiconductor chips. In terms of environmental cleanliness, temperature and humidity control accuracy, cabinet material selection, and anti-pollution structural design, it meets the strict requirements of chip testing. It can effectively avoid damage to precision chips caused by pollutants such as dust, impurities, and condensed water, and is widely applicable to core scenarios such as reliability assessment, failure analysis, and process verification before and after chip packaging. It is an exclusive and suitable equipment for semiconductor enterprises, packaging and testing factories, and research institutions to carry out chip environmental reliability testing.
II. High-Cleanliness Chamber Design: Building a Solid Line of Defense for Precision Chip Testing
The equipment adopts a high-cleanliness chamber structure, and the inner tank is made of high-quality mirror-finish 304/316 stainless steel. Its surface is smooth and dense, not easy to adhere to dust and impurities, and easy and efficient to clean and maintain. It reduces pollution to the chip surface, pins, and packaging structure from micro-particle dust at the source, ensuring that test samples are free from secondary damage.
The internal corners of the chamber adopt a full arc transition design, completely eliminating dead corners and greatly reducing the risk of dust accumulation. The air duct system has undergone professional dust-proof optimization, combined with a low-dust emission air supply mode, to continuously maintain a high-cleanliness state in the test space, perfectly matching the cleanliness requirements of chips, wafers, and packaged devices for the test environment. At the same time, the chamber adopts a tight sealing structure, which effectively blocks the entry of external air impurities and creates a stable, clean, and interference-free internal environment for chip testing.
III. Core Temperature and Humidity Parameters: Precisely Matching the Needs of Chip Packaging Reliability Testing
The temperature range of the equipment fully covers typical test scenarios such as chip low-temperature storage, high-temperature aging, and temperature-humidity cycling. It can be continuously adjusted over a wide range, with precise and stable control of temperature fluctuation and uniformity. It can provide uniform environmental stress for core components such as chip packaging layers, bonding wires, and substrate materials, ensuring that test results are consistent with actual application scenarios.
The humidity range can flexibly cover from low-humidity dry environment to high-temperature and high-humidity environment, accurately adapting to core chip packaging reliability projects such as accelerated humidity aging and Moisture Sensitivity Level (MSL) testing. The humidity control response is stable, effectively avoiding problems such as chip surface condensation, packaging colloid cracking, and pin oxidation caused by sudden humidity changes. It strictly complies with relevant semiconductor industry test standards, ensuring the standardization and reliability of the test process.
IV. Precise Temperature and Humidity Control: Ensuring Stable and Reliable Test Data
The control system is equipped with high-precision temperature and humidity sensors, combined with an intelligent PID adjustment algorithm, which can realize precise control and continuous stable maintenance of temperature and humidity. With small temperature and humidity fluctuations and excellent uniformity, it ensures that the same batch of chip samples is subjected to uniform stress during the test, and the test data has good repeatability and comparability, providing accurate data support for chip quality evaluation.
The equipment supports multi-segment program editing function. According to chip testing needs, it can customize the temperature and humidity rise and fall rate, holding time, and cycle times, perfectly adapting to the complex temperature and humidity alternating processes in chip packaging reliability testing. The program runs stably without parameter drift, which can meet the needs of long-term continuous aging testing and greatly improve test efficiency and accuracy.
V. Structure and Function Adaptation: Meeting Full-Scenario Chip Packaging Testing
The internal space of the chamber is compact and reasonably laid out, which can flexibly place test accessories such as chip trays, carriers, and packaging fixtures. It supports batch placement and testing of small-size chip samples, effectively improving test efficiency and adapting to the large-scale testing needs of enterprises.
The chamber is reserved with small lead holes and high-definition observation windows, which facilitate real-time monitoring of chip electrical parameters during the test, and can directly observe changes in chip appearance and status to detect test abnormalities in a timely manner. The internal air duct adopts a gentle air supply design, avoiding direct scouring of the chip surface by strong air flow, preventing chip displacement and damage, and is especially suitable for testing precision samples such as wafers and thin packaged chips.
VI. Multiple Safety Protections: Safeguarding the Operation of Chips and Equipment
In response to the precision and safety needs of chip testing, the equipment is equipped with a comprehensive safety protection mechanism, including over-temperature protection, humidity over-limit alarm, compressor overload protection, water shortage protection, leakage protection and other multiple functions. During long-term reliability tests, it can automatically monitor the equipment operation status in real time. Once an abnormality occurs, it will immediately shut down and alarm, effectively avoiding the impact of equipment failure on chip samples and ensuring the safety and continuity of the test process.
The refrigeration system adopts a low-vibration design, which greatly reduces vibration during equipment operation, avoids additional mechanical stress interference caused by vibration to chip bonding structures and micro-packaging components, further improves the stability of the test process, and protects the integrity of the chip structure.
VII. Typical Applications: Covering Full-Process Reliability Verification of Chip Packaging
The equipment can fully cover the full-process reliability testing of chip packaging. Before packaging, it can perform high-low temperature and humidity environment testing on wafers and substrate materials to verify the stability of materials under different environmental conditions and provide a basis for packaging process optimization. After packaging, through tests such as high-temperature and high-humidity aging, temperature cycling, and humidity storage, it can accurately evaluate the bonding reliability of packaging colloid, pads, and lead frames, and quickly identify potential failure problems such as delamination, cracking, and leakage.
At the same time, the equipment can be widely used in scenarios such as chip Moisture Sensitivity Level (MSL) verification, automotive chip environmental adaptability testing, consumer electronics chip reliability sampling inspection, and industrial chip weather resistance testing. It provides accurate and reliable data support for chip design optimization, packaging process improvement, and factory quality screening, helping enterprises improve product competitiveness.
VIII. Ingenious Manufacturing and Customized Technical Services
Lab Companion's semiconductor chip-specific high and low temperature humidity test chamber adopts precision sheet metal processing technology, with stable performance in chamber tightness and structural strength. The core control and refrigeration components are all selected from high-quality accessories suitable for semiconductor precision testing, ensuring stable and reliable long-term operation of the equipment and reducing later maintenance costs.
We provide customers with full-process technical services, including equipment installation and commissioning, operation training, and program setting guidance, helping customers get started quickly. At the same time, according to customers' chip size, packaging type, special test standards and scenario needs, we can make customized adjustments to the chamber volume, temperature and humidity range, cleanliness level, carrier interface, etc., fully meeting the exclusive testing needs of different semiconductor enterprises and providing one-stop precision testing solutions.
In the field of environmental reliability testing, whether test equipment complies with international IEC standards and national GB mandatory and recommended standards is not only a direct reflection of core equipment performance, but also the core prerequisite for ensuring test data credibility and global mutual recognition of test results. With years of deep expertise in the R&D and manufacturing of environmental test equipment, Lab Companion adheres to the R&D philosophy of "standards first" at all times. Our rapid temperature change test chamber series is strictly aligned with core global and domestic environmental test standards such as IEC 60068-2-14 and GB/T 2423.22 throughout the entire process, from performance parameter calibration and overall structure design to safety specification implementation and factory precision verification. Featuring full-spectrum compliant design, we provide compliant, precise and reliable temperature cycle test solutions for high-precision industries including electronics and electrical appliances, new energy, automotive components, and medical devices.
1. Anchor Authoritative Standards to Lay a Solid Foundation for Test Compliance
Lab Companion rapid temperature change test chambers are developed and designed based on globally recognized environmental test standards, covering all mainstream authoritative industry specifications, perfectly adapting to multi-scenario product testing and certification needs, and fully breaking through barriers for domestic and international certification testing:
• International Standards: Strictly conform to IEC 60068-2-14, Environmental Testing – Part 2: Test Methods – Test N: Temperature Change, fully meeting the core clause requirements for temperature change rate, temperature field uniformity inside the chamber, and test cycle logic. This ensures that test results issued by the equipment are universally recognized and mutually accepted in the international market, helping customers’ products smoothly enter the global market.
• National Standards: Fully comply with GB/T 2423.22-2021, Environmental Testing – Part 2: Test Methods – Test N: Temperature Change, and also align with GB/T 10592-2023, Technical Specifications for High and Low Temperature Test Chambers. The entire process, from equipment manufacturing and performance index calibration to test execution, fully meets mandatory domestic industry requirements.
• Industry-Specific Standards: Flexibly adaptable to specialized testing standards for targeted industries, including automotive electronics AEC-Q series, military MIL-STD-810H, and medical IEC 60601. Truly achieving "one equipment for multi-scenario and multi-standard compliant testing", maximizing the reduction of customers’ equipment investment and testing costs.
2. Fully Compliant Performance Parameters to Precisely Meet Standard Test Requirements
The implementation of authoritative standards hinges on the precise compliance of core equipment performance parameters. Through continuous technological iteration and process optimization, Lab Companion ensures that all core indicators of rapid temperature change test chambers fully fall within the scope specified by standards, eliminating test failure caused by parameter deviations:
• Compliant Temperature Change Rate: In line with the standard requirement for stable linear temperature change control, the equipment supports customized linear temperature change rates ranging from 5℃/min to 25℃/min. The heating and cooling process is smooth and stable without drastic temperature fluctuations, perfectly matching the temperature change rate requirements in IEC and GB core standards. It can perform temperature cycle and alternating tests of conventional, high-speed and other different levels.
• Compliant Temperature Range Coverage: Meeting the standard-specified range for conventional and extreme temperature change tests, the standard model of Lab Companion test chambers covers a temperature range of -70℃ to 150℃, and custom special models can be expanded to -80℃ to 200℃. This fully covers the low-temperature, high-temperature and temperature alternating test intervals specified in standards, satisfying the temperature change reliability assessment needs of various industrial products.
• Compliant Temperature Control Accuracy: IEC and GB standards impose strict restrictions on temperature field accuracy. Lab Companion rapid temperature change test chambers feature a temperature fluctuation of ≤±0.3℃ and temperature uniformity of ≤±0.5℃, maintaining stable control accuracy even under high-speed temperature change conditions. This completely eliminates test data distortion and failure caused by temperature field deviations, ensuring test results meet standard judgment and audit requirements.
3. Dual Compliance of Temperature Field and Test Process to Ensure Authentic and Traceable Test Data
Global authoritative environmental test standards set detailed and strict specifications for temperature field distribution inside the chamber and test execution procedures. Lab Companion optimizes air duct structure and intelligent control systems to realize standardized and compliant operation throughout the entire test process:
• Compliant Temperature Field Uniformity: Equipped with an exclusive dual-circulation air duct and full-area three-dimensional air circulation design, the temperature difference at multiple points within the effective test space of the chamber is strictly controlled within the standard allowable range. There are no dead corners in the temperature field or excessive local temperature differences, fully meeting the mandatory requirements for temperature field uniformity in the effective working space of test chambers specified in standards.
• Compliant Test Programs: Built with a self-developed Q8 intelligent control system, which supports pre-setting temperature cycle programs in line with various authoritative standards. It allows precise setting and one-click retrieval of parameters such as cycle times, holding time, and temperature change slope, and automatically executes the complete test process, minimizing process deviations and operational errors caused by manual operation.
• Compliant Data Recording: Strictly following the standard requirements for traceable and storable test data, the system collects and stores temperature test data accurately in real time. It supports one-click USB data export and automatic temperature curve generation, with data formats and recording methods fully compliant with product certification audit specifications, providing complete and effective data support for customers’ domestic and international product certification and market access.
4. Full Compliance of Safety and Electrical Systems to Balance Performance and Operational Specifications
In addition to core test performance compliance, Lab Companion rapid temperature change test chambers also strictly follow national mandatory safety standards in terms of electrical safety and structural safety, providing all-round protection for test safety:
• Compliant Electrical Safety: Strictly conforms to GB 5226.1, the mechanical electrical safety standard, equipped with multiple protection devices including leakage protection, overload protection, grounding protection and phase loss protection. The overall circuit layout is standardized and orderly, eliminating all kinds of electrical safety hazards from the source.
• Compliant Structural Safety: Designs such as door interlock protection, over-temperature automatic power-off, and abnormal alarm shutdown fully comply with safety operation specifications for environmental test equipment. It effectively prevents risks of accidental opening and misoperation during testing, protecting both operator personal safety and overall equipment safety, and meeting the mandatory requirements for safety protection of test equipment specified in standards.
From alignment with core standards and implementation of key parameters to standardized test procedures and safety protection compliance, Lab Companion rapid temperature change test chambers adopt an extremely rigorous full-process compliant design, ensuring every environmental reliability test is supported by authoritative standards. This is not only Lab Companion’s commitment to product quality, but also a solid equipment guarantee for customers to smoothly pass various domestic and international certifications and quickly expand into the global market.
Across electronics, new energy, automotive components, hardware and plastics, aerospace, scientific research and testing, and many other industries, the stability, reliability, and durability of products in complex natural environments such as high temperature, high humidity, and temperature-humidity cycling directly determine product quality, service life, and market reputation. As core equipment for environmental reliability testing, high temperature and humidity test chambers undertake the critical mission of simulating extreme temperature and humidity conditions, identifying product defects in advance, and verifying product compliance. With years of deep cultivation in the environmental test equipment industry, Lab Companion relies on profound technical accumulation, strict production standards, and a comprehensive service system to develop a series of high temperature and humidity test chambers. These products stand out as the preferred choice for quality testing in the industry with their precise temperature and humidity control, stable and durable performance, and strong adaptability, helping thousands of enterprises control product quality and overcome industry testing pain points.
1. Industry Imperative: High Temperature and Humidity Testing, the Touchstone of Product Quality
With the upgrading of the manufacturing industry and the continuous improvement of product quality standards, environmental reliability testing before product delivery has become an essential step. High temperature and humidity environments are common triggers for product aging and failure: electronic components are prone to short circuits, oxidation, and performance degradation under high temperature and humidity; new energy batteries may suffer from seal failure and capacity decline in damp heat conditions; automotive interiors and plastic parts are likely to deform, crack, and fade; scientific research samples and precision instruments are easily damaged and produce data deviations in humid and hot environments.
Traditional simple temperature and humidity testing equipment generally suffers from problems such as asynchronous temperature and humidity control, low control accuracy, poor uniformity, easy condensation, and high failure rates, leading to distorted test data and invalid test results. This not only delays product R&D and launch cycles but also hides potential product quality hazards. Targeting these industry pain points, Lab Companion focuses on core high temperature and humidity testing needs, and its series of test chambers fully comply with national and international testing standards including GB and IEC. They can stably simulate an ultra-wide temperature range of -40°C to 150°C and a full humidity range of 20%RH to 98%RH, perfectly meeting the needs of damp heat aging, temperature-humidity cycling, and constant damp heat testing for various products, providing solid support for product quality control.
2. Core Technical Breakthroughs: Solving Industry Challenges, Achieving Precise Temperature and Humidity Coordination
The core competitiveness of Lab Companion high temperature and humidity test chambers stems from independently developed core control technologies, which completely solve the common industry problems of traditional equipment such as "asynchronous temperature and humidity, inaccurate humidity control, and large local temperature differences", realizing stable, uniform, and precise simulation of high temperature and humidity environments.
2.1 Dual PID Collaborative Control System, Synchronous Temperature and Humidity Without Lag
The equipment is equipped with Lab Companion's independently developed C100 intelligent controller, paired with a patented dual PID temperature and humidity collaborative control system and fuzzy logic algorithm. Abandoning the traditional separate control design, it realizes linkage regulation and real-time compensation of the four modules: heating, refrigeration, humidification, and dehumidification. Temperature and humidity parameters rise, fall, and stabilize synchronously with a response time of ≤30 seconds, completely eliminating the problems of humidity lag during heating and sudden humidity drop during cooling in traditional equipment. The temperature control accuracy reaches ±0.3°C, and humidity control accuracy reaches ±2%RH, with temperature and humidity fluctuations far better than industry standards, ensuring the test environment is highly consistent with real extreme scenarios and test data is accurate and reliable.
2.2 Triple Anti-Condensation Technology, Protecting Test Samples Safely
To address the common issues of chamber condensation and water dripping that damage samples during high temperature and humidity testing, Lab Companion has innovatively created a triple anti-ondensation system: preheating air duct + exclusive hydrophobic coating + balanced air circulation. Anti-condensation coatings are sprayed on key parts such as the inner tank and chamber door, and the optimized air duct design ensures uniform air distribution, with no condensation or water accumulation throughout the test. This avoids damage to precision samples caused by condensation, making it especially suitable for testing humidity-sensitive samples such as electronic chips, precision components, and new energy materials.
2.3 High-Efficiency Air Duct Design, Maximizing Temperature and Humidity Uniformity
Adopting a vortex guide air duct paired with a high-wind-speed centrifugal fan, the air circulation frequency inside the chamber reaches 50 times per minute. Combined with a honeycomb air diffusion structure, it eliminates local temperature and humidity dead corners. Under no-load conditions, the temperature field uniformity is ≤±1.5°C, and humidity field uniformity is ≤±3%RH, ensuring consistent temperature and humidity parameters in every test area inside the chamber. Regardless of sample size or placement position, a uniform test environment is guaranteed, ensuring consistent results for batch testing.
3. Robust Hardware Configuration: Full-Line SUS316 Stainless Steel, Upgraded Durability
Lab Companion always adheres to the principle of "quality first". All high temperature and humidity test chambers are equipped with world-renowned brand core components and high-quality materials, balancing durability, stability, and energy efficiency. Core materials are fully upgraded to SUS316 stainless steel, with performance far exceeding conventional standards, meeting the long-term, high-frequency, and high-intensity testing needs of laboratories and production workshops.
• SUS316 Stainless Steel Inner Tank and Chamber Structure The inner tank is made of SUS316 stainless steel, a high-end corrosion-resistant stainless steel with added molybdenum element and higher chromium and nickel content compared to conventional 304 stainless steel. Its high temperature resistance, high humidity resistance, and acid and alkali corrosion resistance are significantly improved. It is particularly suitable for long-term high temperature and humidity testing environments with trace corrosive media, not easy to rust or corrode by water vapor, with a smooth and easy-to-clean inner wall and no residual stains. Its service life far exceeds that of ordinary stainless steel inner tanks, maintaining intact condition after long-term operation. The outer shell of the chamber is made of high-quality steel plate with plastic spraying, sturdy and wear-resistant, with a simple and elegant appearance, stable overall structure, no shaking and low noise during operation, adapting to multiple application scenarios in laboratories and production workshops.
• SUS316 Stainless Steel Grating Sample Rack, Flexible and Secure The matching grating sample rack is also made of SUS316 stainless steel, achieving high-standard matching from material to details, completely eliminating the risk of corrosion and oxidation caused by contact between different materials. The sample rack supports free height adjustment, allowing flexible adjustment of placement space according to sample size and stacking requirements. Whether it is small test pieces, medium-sized components, or large equipment, the test position can be accurately positioned to make full use of the effective space inside the chamber. Each rack has a load capacity of up to 20kg, stably carrying various samples to ensure sample stability and fixed position during testing, guaranteeing the accuracy and reliability of test data.
• High-Performance Refrigeration and Humidification System The refrigeration system selects imported brand compressors such as German Bitzer and American Copeland, paired with environmentally friendly refrigerants, featuring high refrigeration efficiency, low energy consumption, and stable operation, with trouble-free operation under low temperature working conditions. The humidification system adopts integrated boiler steam humidification, with uniform humidification and fast response, paired with a water recovery and filtration device to greatly reduce water consumption, extend the service life of humidifying components, and reduce operation and maintenance costs.
• Full-Size Volume Options, Customized Adaptation Standard volume models are available including 36L, 64L, 80L, 150L, 408L, and up to 1000L, and customized non-standard sizes and walk-in high temperature and humidity rooms are also supported. Whether it is small precision components and test pieces, medium-sized assemblies, large automotive parts, battery packs, or complete equipment, the test space needs can be accurately matched, perfectly adapting to the diverse testing scenarios of enterprises of different scales, R&D laboratories, and quality inspection centers, avoiding space waste and testing limitations.
• User-Friendly Operation Design Equipped with a large-size high-definition touch screen andChinese-English bilingual menu, it is simple and easy to operate, supporting program editing, cycle testing, timed start, data recording, fault alarm and other functions. The chamber door is equipped with a large-view observation window and built-in lighting, allowing real-time observation of sample testing status without opening the door. Paired with the height-adjustable SUS316 stainless steel sample rack, it achieves an efficient testing experience of "precise placement + real-time observation".
4. Comprehensive Safety Protection + Full-Cycle Service, Worry-Free Use
As one of the first enterprises in China to obtain CE certification for environmental test equipment, Lab Companion has built a comprehensive safety protection system for its high temperature and humidity test chambers, equipped with more than ten safety devices including compressor overpressure/overcurrent/overheating protection, heater overload protection, water shortage protection, leakage protection, over-temperature protection, and phase sequence protection. The equipment automatically alarms and shuts down in case of abnormalities, fully protecting the safe operation of the equipment and the personal safety of operators.
At the same time, Lab Companion has built a nationwide after-sales service network, with sales and after-sales service centers set up in Beijing, Shanghai, Chongqing, Chengdu, Wuhan, Xi'an and other major cities. It provides full-cycle services including equipment installation and commissioning, operation training, regular maintenance, fault repair, and parts replacement, with timely and efficient response, completely eliminating users' after-sales concerns. The company has passed ISO9001 quality management system certification and ISO14000 environmental management system certification. Each equipment undergoes strict performance testing and trouble-free trial operation before delivery, ensuring stable use upon arrival. Some models have even won customer recognition for continuous use for twenty years.
5. Diverse Application Scenarios, Covering Full Industry Testing Needs
With excellent performance and wide adaptability, Lab Companion high temperature and humidity test chambers are widely used in electronics, new energy, automotive manufacturing, hardware and plastics, aerospace, scientific research institutions, quality inspection centers and other fields. They have become long-term cooperative equipment for leading enterprises such as Huawei and BYD, as well as various scientific research and testing institutions. They can perfectly implement domestic and international standard tests such as GB/T 2423.3 and IEC 60068-2-78, helping products pass quality certification and enhance market competitiveness.
• Electronics Industry: Damp heat aging and reliability testing of PCBs, chips, connectors, and sensors;
• New Energy Industry: Temperature-humidity cycling and sealing performance testing of lithium batteries, energy storage modules, and photovoltaic components;
• Automotive Industry: High and low temperature damp heat cycling testing of interior parts, dashboards, chassis components, and automotive electronics;
• Materials Industry: Damp heat aging and weather resistance testing of plastics, rubber, coatings, and metal materials;
• Scientific Research and Testing: Environmental simulation experiments and sample performance testing in university laboratories and quality inspection institutions.
6. Conclusion: Empowering Quality Upgrading in Manufacturing with Professional Technology
From core technology R&D to full-line SUS316 stainless steel material upgrade, from height-adjustable high-precision sample rack design to full-cycle after-sales service, Lab Companion has always focused on the environmental test equipment industry, crafting high-quality high temperature and humidity test chambers with ingenuity. With precise, stable, and reliable performance, it safeguards product quality control for enterprises. Facing the new requirements of high-quality development in the manufacturing industry, Lab Companion will continue to focus on technological innovation, continuously optimize product performance, help various industries break through environmental testing bottlenecks, enhance core product competitiveness, and become a trusted partner for environmental test equipment.
Against the backdrop of rapid evolution and upgrading in the global high-end manufacturing sector, the entire industry is shifting toward an irreversible trend of specialized segmentation and precision customization. Cutting-edge sectors including semiconductor chip manufacturing, new energy lithium battery and photovoltaic production, biomedicine, precision electronics, and LCD panel processing show drastically differentiated and highly stringent requirements for key parameters of oven equipment, such as temperature control accuracy, cleanliness, vacuum degree, and operational safety. Customization and scenario-specific precision have become the core competitive demands driving the global industrial oven market forward. Relevant industry research data reveals that the combined demand for professional thermal processing ovens in the semiconductor and new energy sectors alone accounts for more than 60% of the total market share, and traditional single-parameter general-purpose ovens are completely unable to meet the diverse, multi-process, and high-standard application needs of modern refined industrial production.
With decades of deep cultivation and technical accumulation in the global thermal processing equipment field, Lab Companion has built a comprehensive and systematic product matrix, as well as industry-leading precise parameter matching and customization capabilities. The brand perfectly aligns with the global trend of refined industrial scenario development, focusing on solving targeted pain points in thermal processing for different industries, and delivering highly adaptable, reliable, and efficient full-process thermal treatment solutions to customers in high-end manufacturing fields worldwide.
I. Scenario Segmentation: The Core Logic of Oven Classification
Oven classification is never based on superficial indicators such as appearance size or volume, but is fundamentally rooted in actual application scenarios and specific process production requirements — these two dimensions form the core logic of scientific oven categorization. Any classification standard that is detached from real production and application scenarios lacks practical guiding significance, and cannot help enterprises select the most suitable equipment or maximize production efficiency.
As global high-end manufacturing continues to refine and upgrade, the classification boundaries of industrial and laboratory ovens have become increasingly clear and standardized. After long-term market validation and industry optimization, ovens are mainly divided into four core categories, each designed for exclusive application scenarios and process targets:
• Basic General-Purpose Ovens
• Cleanroom Dust-Free Ovens
• Vacuum & Oxygen-Free Ovens
• Special-Function Ovens
Each of these four categories corresponds to clear and distinct application needs and process standards, a classification logic that is fully consistent with Lab Companion’s global product layout and R&D direction. Its full range of ovens precisely covers all these four major categories, seamlessly supporting all scenarios from small-batch laboratory research and development, sample testing, and pilot experiments to large-scale industrial mass production, fully covering the entire industrial chain of thermal processing.
II. Basic Scenarios: Adaptation Priorities for Laboratory & Industrial General Models
1. Laboratory Scenarios
Laboratory applications focus on small-batch sample processing, high-precision experimental data, and flexible multi-scenario testing, serving universities, scientific research institutes, corporate R&D centers, and third-party testing institutions. The core requirements for laboratory ovens include user-friendly operation, stable and precise temperature control, strong compatibility with various sample types, and no interference with experimental results.
Lab Companion laboratory ovens feature:
• Temperature range: RT ~ 300°C
• Temperature accuracy: ±0.5°C
• Temperature uniformity: ≤ 2°C
• SUS304 stainless steel interior
• Dual-air duct forced circulation for uniform heating
• Multi-program preset storage
With these professional configurations and stable performance, Lab Companion laboratory ovens are highly recognized in the global scientific research field, and are widely used for routine and precision experiments including sample drying, material curing, high-temperature sterilization, aging testing, and thermal stability analysis in universities and research institutes.
2. Industrial General Scenarios
Industrial general production scenarios prioritize high throughput production efficiency, long-term stable continuous operation, and low maintenance costs, as industrial production lines require equipment to withstand high-intensity daily use and maintain consistent performance without frequent downtime.
Lab Companion industrial ovens adopt:
• PID + solid-state relay temperature control
• Adjustable variable-frequency heating power
• Thickened stainless steel chamber
• 24-hour continuous operation capability
• Optional double front/rear doors and pipeline integration
These targeted industrial designs make Lab Companion industrial ovens perfectly suitable for enterprise pilot production lines and large-scale mass production lines, strongly supporting the current trend of large-scale, efficient, and automated industrial manufacturing, and helping enterprises improve overall production efficiency and product stability.
III. Special Working Conditions: Core Parameter Adaptation for Specialized Ovens
The rapid development and technological breakthrough of global high-end manufacturing have driven a sharp surge in demand for special working condition scenarios, where conventional ovens cannot meet the extreme performance requirements, and specialized customized ovens have become essential core equipment for these high-value industries.
1. Clean & Dust-Free Environments
Industries such as semiconductor wafer manufacturing, LCD flat panel production, biomedical consumables processing, and precision electronic component assembly require ultra-clean production environments to avoid product defects caused by micro-dust particles, with a mandatory Class 100 (ISO Class 5) clean level for core processing areas.
Lab Companion cleanroom and class-100 ovens provide:
• Imported HEPA filters with 99.99% efficiency @ 0.3μm
• Argon-welded, dust-free construction
• Mirror-finish SUS304 stainless steel interior
• Temperature range: RT+20 ~ 300°C
• Temperature accuracy: ±0.1°C
These professional clean oven configurations effectively eliminate dust contamination risks and ensure zero impurity interference during thermal processing, making them ideal for high-precision processes such as semiconductor silicon wafer baking, photoresist curing, biomedical material sterilization, and precision electronic component drying.
2. Explosion-Proof & Flammable Applications
For the processing of flammable and explosive raw materials and semi-finished products in chemical engineering, new energy battery material production, coating manufacturing, and adhesive curing industries, operational safety is the top priority. Lab Companion explosion-proof safety ovens comply strictly with the national standard GB/T 32710.10-2016 for explosion-proof equipment, equipped with professional explosion-proof electrical components, standardized pressure relief vents, and multi-layer safety interlock protection systems, which can effectively monitor and eliminate potential safety hazards in real time, ensuring safe and stable operation even when handling high-risk materials.
3. Vacuum & Oxygen-Sensitive Processes
For oxidation-prone materials such as metal powder, precision alloy parts, sensitive electronic components, and lithium battery core materials, direct heating in an aerobic environment will cause oxidation, discoloration, and performance degradation, seriously affecting product qualification rate. Lab Companion vacuum ovens achieve an ultra-high vacuum level ≤ 5 Pa with excellent sealing performance, while dedicated oxygen-free ovens can reduce the internal oxygen content to below 50 ppm within just 30 minutes, creating a completely oxygen-isolated thermal processing environment and reliably solving the long-standing industry problem of material oxidation during heating.
IV. Key Selection Principles: Scenario-Oriented Core Considerations
Under the global trend of scenario refinement in manufacturing, oven equipment selection should always prioritize accurate matching between core parameters and actual scenario needs, rather than blindly pursuing high-end configurations or excessive parameter indicators that lead to unnecessary cost waste and equipment underutilization.
With profound industry insight and in-depth understanding of segmented scenario pain points across global high-end manufacturing, Lab Companion integrates precise parameter adaptation with flexible personalized customization services, completely breaking the limitations of the traditional "one-size-fits-all" equipment model. Whether customers need small precision desktop ovens for laboratories, large-scale vertical or horizontal ovens for industrial mass production, or specialized units for extreme special working conditions, Lab Companion provides fully tailored solutions by flexibly adjusting core parameters such as temperature range, internal chamber volume, cleanliness level, vacuum degree, temperature control mode, and external dimensions according to specific customer process requirements, establishing itself as a trusted and preferred brand in the segmented global high-end manufacturing thermal processing market.
With the same raw materials and similar heating processes, why do your competitors maintain a drying pass rate of over 98% while your batch defect rate remains stubbornly high, with your pass rate dropping below 70%? Why do your dried finished products frequently suffer from cracking, bubbling, deformation, oxidation and discoloration, leading to surging rework and material waste costs?
With 21 years of deep expertise in industrial oven manufacturing and serving more than 5,000 manufacturing enterprises worldwide, Lab Companion clearly states: 90% of drying process problems stem from incorrect oven selection! When choosing between a vacuum oven and a standard oven, the vast majority of engineers only judge by the single factor of "heating capability", completely ignoring core requirements such as material properties, process precision and production environment. This wrong equipment selection ultimately slows down production, lowers product quality and inflates overall operational costs.
This article draws on Lab Companion’s 21 years of industry practical experience and a vast number of customer implementation cases, to deeply dissect the core differences between vacuum ovens and standard ovens, clarify accurate selection logic, and help every process engineer and procurement professional avoid selection pitfalls and choose the right equipment in one step.
In-Depth Answers to Core Questions: Understand the Differences to Avoid Selection Mistakes
1. Vacuum Oven vs. Standard Oven: What Are the Essential Differences? What Are the Core Advantages of a Vacuum Oven?
Although both appear to be heating and drying equipment, standard ovens and vacuum ovens differ vastly in working principles and applicable scenarios — it is far more than just a matter of "having a vacuum function or not".
Standard Oven: Achieves heating, drying and curing through forced hot air circulation and convection, with air conduction as its core principle. It is an atmospheric pressure drying device, featuring simple structure, easy operation and low procurement cost. However, it has two inherent limitations: first, it is fully exposed to air and cannot isolate oxygen, making it impossible to prevent deterioration of heat-sensitive and oxidizable materials; second, hot air only acts on the material surface, failing to penetrate the interior of porous or complex-structured materials, resulting in incomplete drying and excessive residual moisture and solvents. It is only suitable for basic conventional drying scenarios and cannot meet high-precision, high-demand processes.
Lab Companion Vacuum Oven: Built around the core of hermetic vacuum environment + precise temperature-controlled drying, it completely breaks through the process limitations of standard ovens. Its core advantages and essential differences are concentrated in three key aspects:
1. Efficient Low-Temperature Drying, Protecting Heat-Sensitive Materials: The boiling point of materials is greatly reduced in a vacuum environment, enabling rapid dehydration without high temperatures. This perfectly avoids denaturation, aging and damage to heat-sensitive materials such as semiconductor chips, pharmaceutical raw materials, precision electronic components and lithium battery materials caused by high heat.
2. Air-Isolated Oxygen-Free Drying, Eliminating Oxidation Risks: The fully sealed vacuum environment blocks oxygen and external impurities, fundamentally preventing oxidation, discoloration, rust and corrosion of highly reactive metals, precision components and special polymer materials, significantly improving finished product stability and pass rate.
3. Deep Moisture and Solvent Removal, Eliminating Defective Products: The negative pressure environment can strongly extract residual moisture, gas and organic solvents from micro-pores and gaps inside materials, ensuring thorough drying. It directly solves persistent problems such as product cracking, bubbling, internal delamination and deformation caused by atmospheric drying, making it ideal for the strict drying requirements of high-value, high-precision products.
2. Accurate Selection Guide: When is a Vacuum Oven a Must? When is a Standard Oven Sufficient?
Core Principle for Selection: Do not blindly pursue high-end equipment; choosing the one that fits your process needs is the optimal solution. This approach avoids unnecessary costs while guaranteeing product quality. The scenarios are clearly categorized below for direct reference:
✅ 4 Scenarios Where a Vacuum Oven is Mandatory (Wrong Selection Will Definitely Cause Defects)
• High-value materials as core precision components: Such as semiconductor chips, lithium battery anode and cathode materials, precision electronic assemblies, aerospace parts and pharmaceutical intermediates, where zero oxidation, deformation or impurity contamination is allowed;
• Complex and porous product structures: Such as ceramic components, porous metals, precision molds and composite materials, where atmospheric hot air cannot penetrate the interior and leads to incomplete drying;
• Strict process precision requirements: Residual moisture ≤ 0.1%, or solvent recovery is required, or volatile gas pollution to the workshop must be avoided;
• Special process requirements: Scenarios requiring cross-contamination prevention between materials, oxidation reaction suppression, and oxygen-free drying.
✅ Standard Oven Offers Maximum Cost-Effectiveness for Conventional Scenarios
Lab Companion laboratory ovens and standard industrial ovens are suitable for drying, curing, aging and sterilization of ordinary plastics, hardware, glass and conventional consumables. For scenarios with no special requirements for drying precision, oxygen-free environment or ultra-low residue, they feature lower procurement and operation costs, simpler daily maintenance, and fully meet basic production needs.

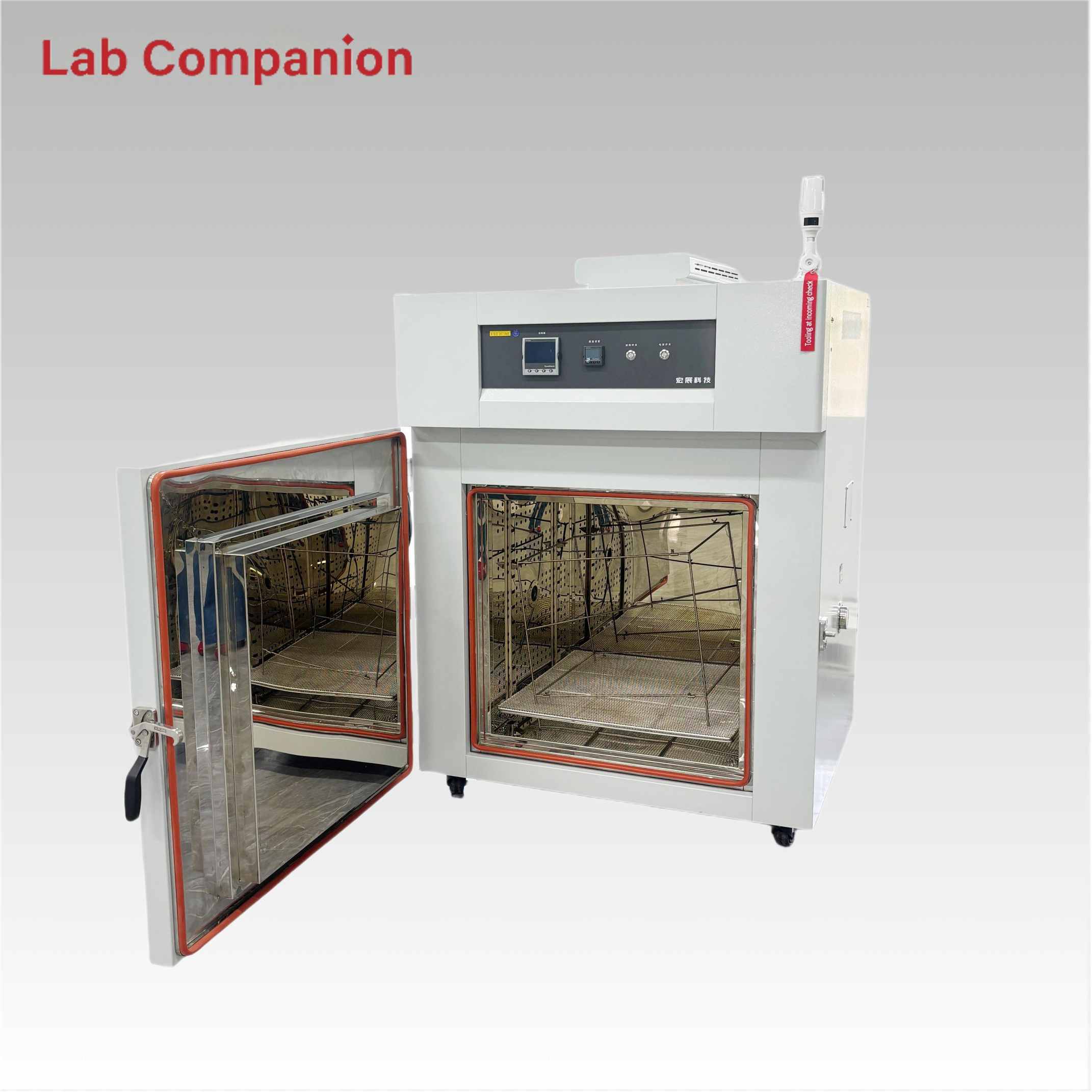

3. Why Are Lab Companion Vacuum Ovens the Industry’s Top Choice, Recognized by Leading Enterprises?
Lab Companion vacuum oven series (popular models including DZF-6020/6050) are long-term stable suppliers to top global enterprises, passing strict quality and process verification. They outperform similar products thanks to three core hard-core advantages:
1. Ultra-Precise Temperature Control, Uniform Temperature Field Without Deviation: Equipped with original Japan Fuji temperature controllers and high-precision PT100 thermal resistance sensors, paired with a triple temperature control algorithm (PID + PWM + SSR). The temperature control accuracy reaches ±0.5℃, and temperature field uniformity is ≤3%, far exceeding national standard indicators. This ensures consistent drying effects for every batch of materials, eliminating issues of local over-drying or incomplete drying.
2. Stable Vacuum Performance, Zero Leakage Sealing: Adopts a multi-stage vacuum pump combination design, with an ultimate vacuum degree as low as ≤1Pa and vacuum pressure holding time exceeding 24 hours, delivering exceptional stability; the chamber adopts argon arc welding precision sealing technology with high-quality sealing parts, completely eliminating vacuum leakage risks and maintaining stable performance over long-term use.
3. Intelligent Operation + Dual Safety Protection: Configured with a 7-inch HD touch screen and PLC intelligent control system, supporting custom multi-segment programming settings and automatic operation data export, adapting to automated production needs; built with dual-stage over-temperature power-off protection and explosion-proof safety structure, providing comprehensive safety coverage for laboratory R&D and workshop mass production operations with zero worries.
4. Full Range of Lab Companion Vacuum Oven Models, Customization Available
Lab Companion has developed a full-spec vacuum oven product line for different usage scenarios, covering the entire production process:
• Laboratory Small-Size Models: Classic models such as DZF-6020 and DZF-6050, with a volume of 10L-100L, suitable for laboratory R&D and small-batch trial production;
• Industrial Large-Size Models: Volume ranging from 100L-1000L, with extra-large custom sizes available to meet the needs of industrial large-scale continuous production.
We also provide one-on-one exclusive customization services, tailoring dedicated drying solutions according to customers’ industry (lithium batteries, semiconductors, pharmaceuticals, aerospace, etc.), temperature requirements (room temperature - 500℃), vacuum degree standards, cleanliness levels and special process requirements, perfectly solving drying challenges in various special scenarios.
Selection Summary: Core Differences Lie in Process Compatibility, Right Equipment Reduces Costs and Boosts Efficiency
The core difference between a vacuum oven and a standard oven is not equipment configuration, but process compatibility and scenario adaptability. Standard ovens focus on basic drying with cost-effectiveness as the priority; vacuum ovens focus on high-precision, oxygen-free and deep drying, with quality as the priority.
The key to selection: Stick to your own material properties, process precision requirements and production standards, reject blind selection, to fundamentally solve problems of poor drying, excessive waste and soaring costs.
With 21 years of focus on oven R&D and manufacturing, Lab Companion has become the preferred drying equipment partner for thousands of enterprises worldwide, relying on mature technology, stable products and comprehensive customization services. Choose the right oven, avoid selection pitfalls, directly improve product pass rate, reduce production costs, and make every drying process precise and efficient.

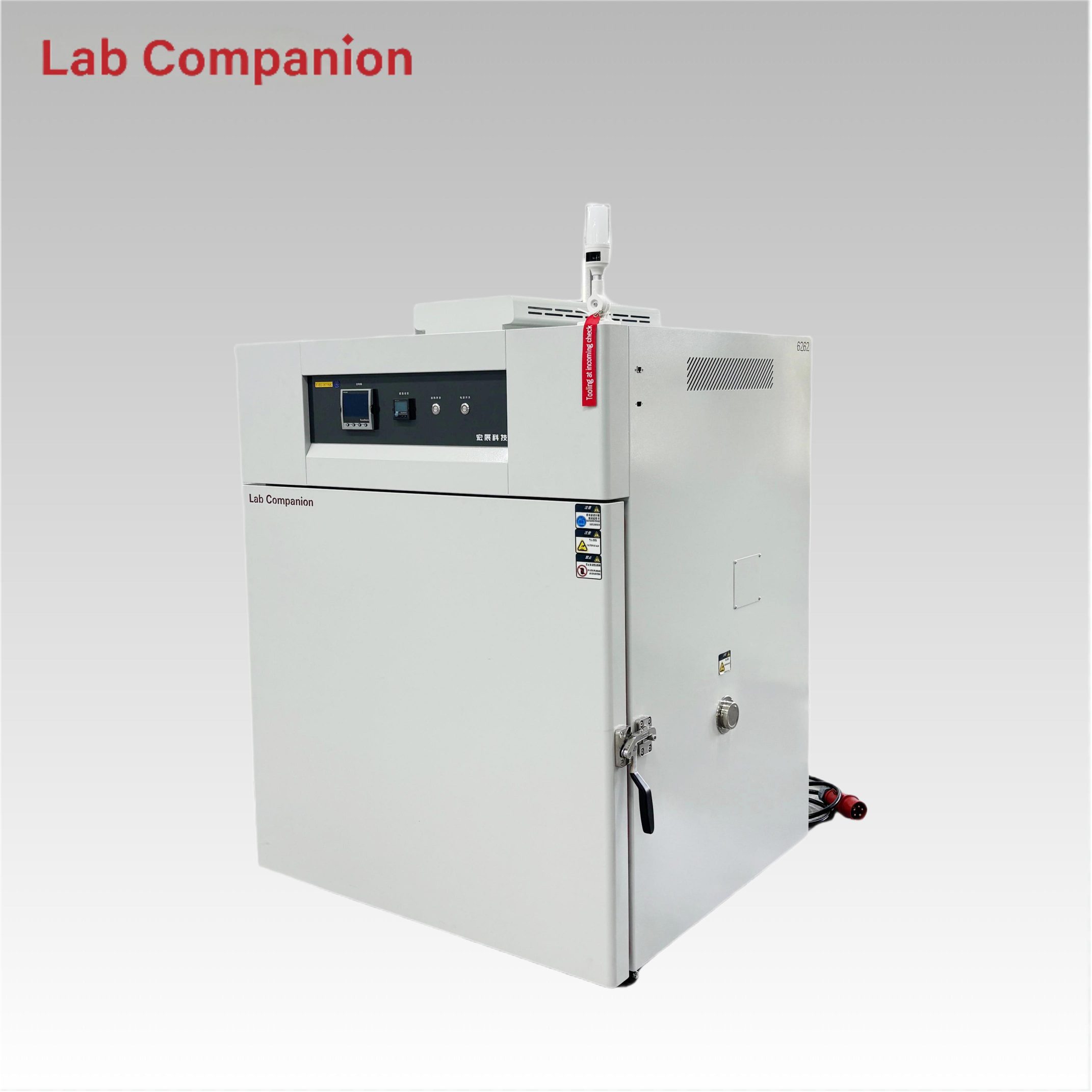

As the global wave of Industry 4.0 continues to deepen, the high-end manufacturing industry is accelerating its transformation towards digitalization and intelligence. Intelligent equipment control and data traceability have become core market demands. According to industry trend data, the compound annual growth rate of the industrial intelligent equipment market exceeds 30%, and dust-free and oxygen-free ovens are evolving towards the direction of "intelligent operation, digital control, and remote operation & maintenance". As one of the top ten manufacturers of dust-free and oxygen-free ovens, Lab Companion has taken the lead in laying out intelligent technologies, integrating digital control into core product parameters, breaking the pain points of traditional equipment such as "manual operation and vague data", and providing enterprises with efficient and precise digital heat treatment solutions.
Market Trend: Intelligent Control Becomes the Core Competitiveness of Equipment
With the in-depth advancement of Industry 4.0, enterprises' demand for digital and refined control over the production process is growing day by day. Traditional dust-free and oxygen-free ovens rely on manual operation and parameter recording, which are plagued by cumbersome operations, untraceable data, and low control accuracy — these drawbacks can no longer meet the production requirements of high-end industries such as semiconductors and new energy. At present, all top ten manufacturers are increasing investment in intelligent technologies, and the intelligent parameters and data capabilities of equipment have become core considerations for enterprise selection, making intelligent control the mainstream development trend of the dust-free and oxygen-free oven industry.
Lab Companion: Core Parameter Upgrades for Full-Process Digital Control
Keeping pace with the Industry 4.0 trend, Lab Companion deeply integrates intelligent technologies with core parameters to develop dust-free and oxygen-free ovens with digital control capabilities, forming a differentiated advantage among the top ten manufacturers. In terms of intelligent operation, the equipment adopts a 10-inch Yudian touch screen combined with an AI/PID automatic calculation system, supporting 120 groups × 100 segments of programmable temperature control. It allows pre-setting of different process parameters to realize automatic heating, heat preservation and cooling, reducing manual operation errors and improving production efficiency; meanwhile, the equipment supports one-click saving and calling of parameters, facilitating production control for multiple processes and batches.
For data traceability, the oven can be equipped with an optional 6-point temperature recorder and oxygen content analyzer, which collects and records core parameters such as temperature and oxygen content in real time. All data is traceable and exportable, meeting enterprise production compliance requirements. With an optional RS485 communication port, the equipment can be connected to the enterprise's production management system, enabling remote monitoring and parameter adjustment without on-site duty, greatly reducing labor costs. In addition, the oven is equipped with a Siemens PLC main controller for stable operation, featuring automatic fault alarm and sensor disconnection protection to further enhance intelligent control level. Paired with a PT100 thermal resistance sensor, it achieves a temperature data collection accuracy of ±0.1℃, ensuring precise and reliable data.
Leading with Intelligence: Empowering Efficient Enterprise Production Through Digitalization
The intelligent parameters of Lab Companion are centered on "practicality and digitalization", fitting the actual production needs of enterprises. Unlike some products among the top ten manufacturers with "superficial intelligence", Lab Companion truly realizes "intelligent operation, digital control, and convenient operation & maintenance". At present, Lab Companion intelligent dust-free and oxygen-free ovens are widely used in high-end fields such as semiconductors and new energy, helping enterprises achieve digital control of the production process, improve production efficiency and product yield.
In the future, Lab Companion will continue to focus on intelligent technologies, optimize intelligent parameter configuration in line with Industry 4.0 development trends, promote the development of dust-free and oxygen-free ovens towards a more intelligent, efficient and convenient direction, and assist enterprises in achieving digital transformation.
Если вы заинтересованы в нашей продукции и хотите узнать более подробную информацию, пожалуйста, оставьте сообщение здесь, мы ответим вам, как только сможем.
Получить цену
Поддерживается сеть IPv6
